Technical Specification Appendix B

Rollcage

• All vehicles must have a six point rollcage mounted directly to the frame or chassis structure that connects all six points.
• Rollcage must be designed to protect the driver from all sides.
• Seamless Steel tubes of at least 350 N/mm2 must be used. Aluminum or Chromemoly Steel is not allowed.
• Tube size must be minimum 2,5 x 45mm alternatively 2 x 50mm.
• Vehicles that do not presently have the minimum size/quality tubing in the rollcage will only be allowed to compete until 31.12.2006. After this time the rollcage must be replaced to comply with current specifications.
• No tube bends may be smaller than 3 x the tube diameter.
• All welds must be high quality. Grinding of the welds is not allowed.

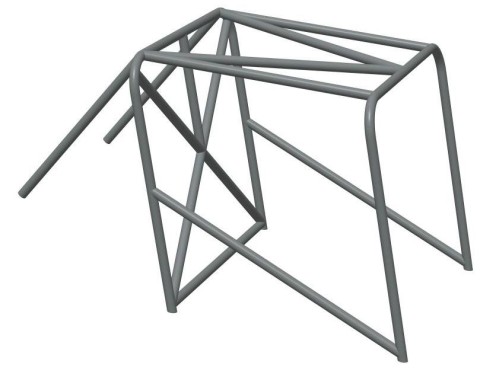

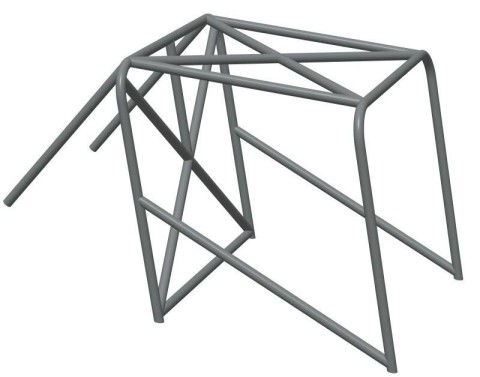

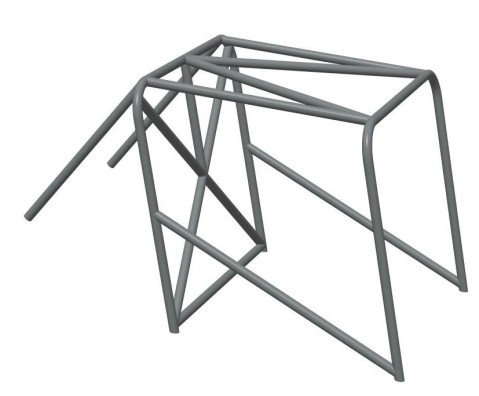

• Minimum requirements of design (refer to schematic drawing):
  1. One piece main rollbar installed from side to side of vehicle.
  2. One piece front bar installed from side to side or one piece side bars with front bar connecting the two.
  3. Rear braces from rear top corners to back of vehicle in minimum 30 degree angle.
  4. Diagonal cross braces in main rollbar or in rear braces. (For vehicles licensed after 01.01.2006 it must be in the main rollbar)
  5. If rollbar width is more than 100cm: Vertical bar from top center of rear rollbar to meeting point of cross braces.
  6. “V” or “X” bars in roof of rollcage.
• Roof plate mounted on top of rollcage:
  1. 1mm steel plate securely welded in place,
  or
  2. 2mm steel plate bolted in place with M8 bolts of 8.8 grade no more than 50cm apart,
  or
  3. 3mm aluminium plate bolted in place with M8 bolts of 8.8 grade no more than 50cm apart.
  4. For bolting of plate mounting brackets must be welded to rollcage. No drilling allowed in rollcage.
• For vehicles licensed after 01-01-2006:
  1. Minimum size of roofplate is 0,75 m2
  2. Minimum width of rollcage is 100cm.
  3. Minimum distance from center of driver seat to outer edge of rollcage is 40cm.
  4. Tube connecting left and right side of main rollbar mounted as low as possible in the chassis.
  6. Tubes connecting front and rear rollbar. Preferred location is as low as possible in front bar and mid height in the main rollbar.
•

These are the current technical specifications. If you know about any changes please let me know.
