Custom Sport Trac: Turning Trac

Custom Sport Trac:
Turning Trac

Now that the major buildup has been taken care of...

...some work still has to be done.

Custom Sport Trac: Turning Trac

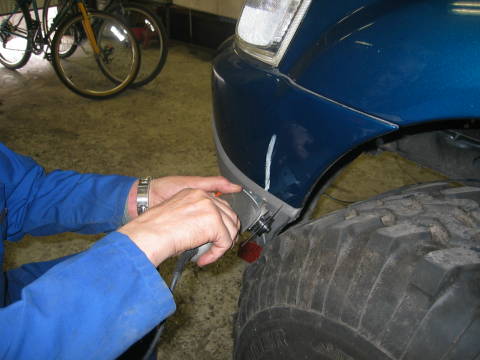

Still some cutting to fit the tires and get it outside.

Custom Sport Trac: Turning Trac

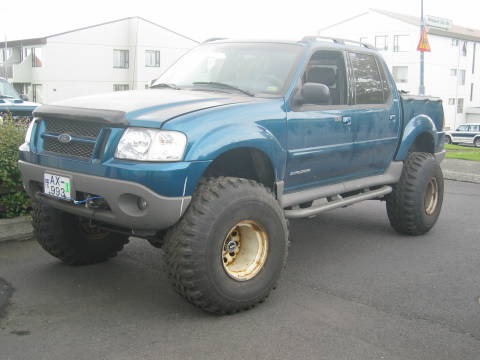

Finally standing on its own tires and out in the open. Getting it out was not too hard but with the steering still not in place turning the Trac is a bit tricky.

Custom Sport Trac: Turning Trac

Looks good!

Steering

Custom Sport Trac: Turning Trac

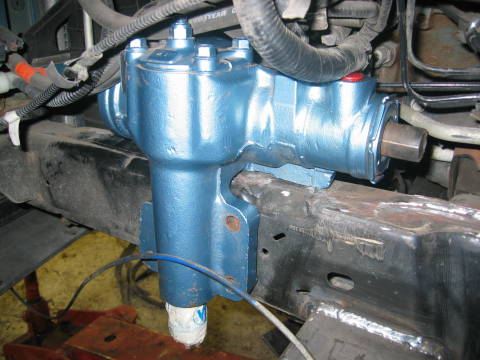

To replace the car-like steering box in the original Sport Trac I got this rebuilt steering box from an old Bronco. It has to be placed on the left side of the framing, just in front of the steering rod. Here it is being tried out, but it has to be moved quite a bit to the front.

Custom Sport Trac: Turning Trac

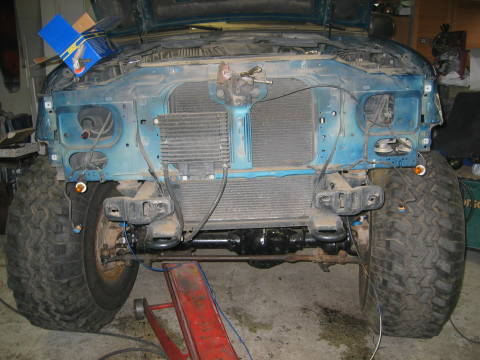

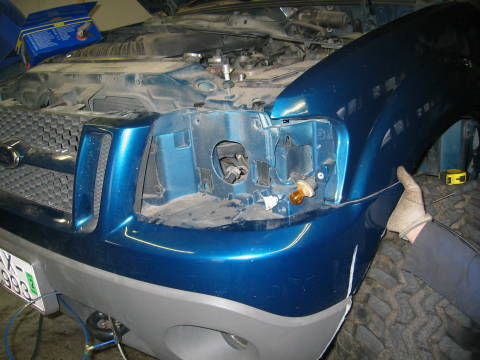

In order to get a better working access to position the box and other steering stuff, the whole front has to be removed. First taking out the lights, then the upper front and last the bumper.

Custom Sport Trac: Turning Trac

Looks kind of weird and faceless...

You can also notice that it is leaning a bit to its right side. This is because one of the radius arms is a little bit bent. This has later been corrected.

Custom Sport Trac: Turning Trac

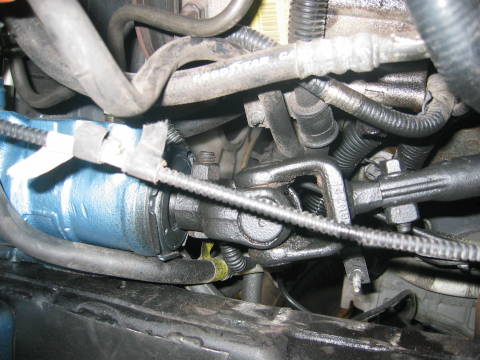

With the steering box in place a way to connect to the new drag link is needed. Problem was that the steering box didn't come with any part of the old drag link and I had to search for one. Lucky for me Raggi from 4x4.is had an old Bronco with the original drag link I could use.

Custom Sport Trac: Turning Trac

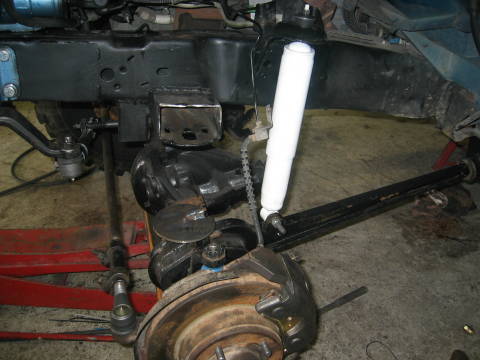

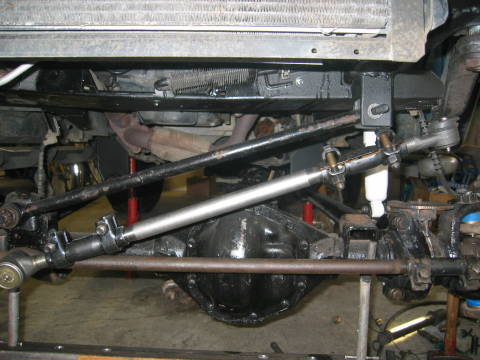

Steering rods are now in place with all new tie-rod ends.

Air-bags

Custom Sport Trac: Turning Trac

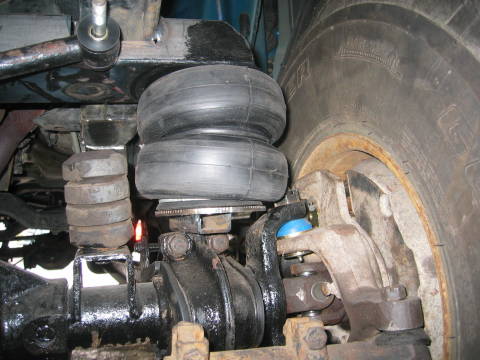

As you can see, the front air-bag is a little bit bent.

Custom Sport Trac: Turning Trac

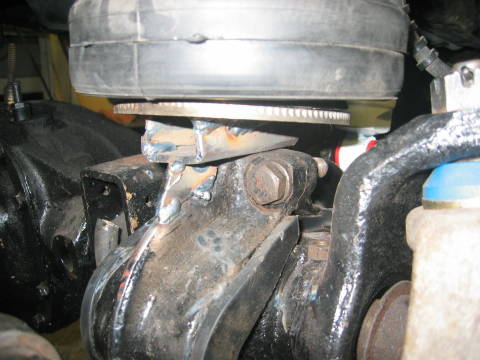

This is now corrected by positioning the bottom place at the correct angle.

Driveline

Custom Sport Trac: Turning Trac

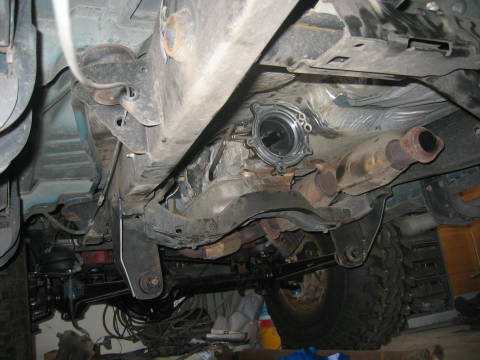

With the transfer case in place.

Custom Sport Trac: Turning Trac

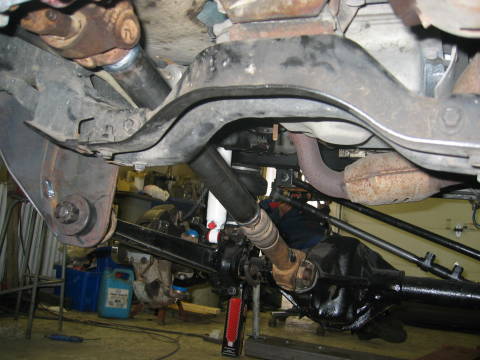

Drive shafts have been made longer both the rear shaft...

Custom Sport Trac: Turning Trac

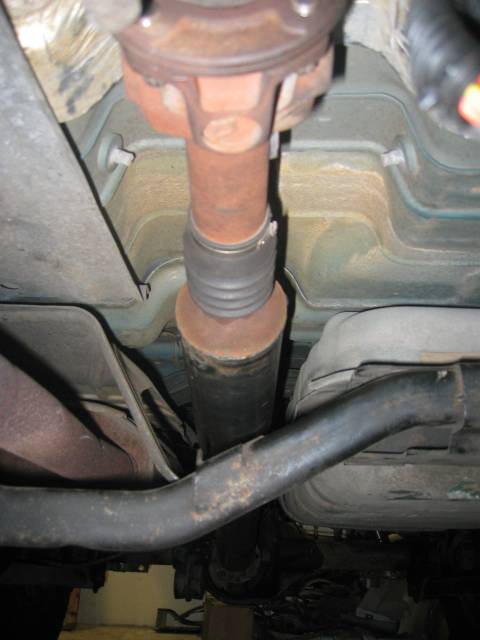

... as well as the front.

Both are professionally elongated in a special garage that makes sure it doesn't vibrate.

Shocks

Custom Sport Trac: Turning Trac

After some careful consideration I decided to use the RS-9000 shock absorbers from Rancho.

Custom Sport Trac: Turning Trac

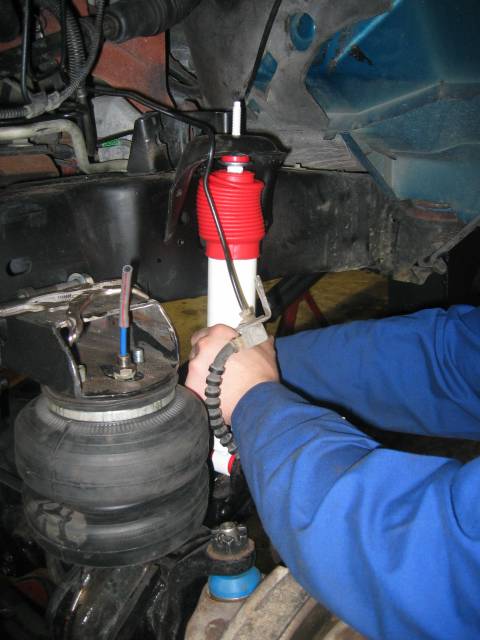

Oli is fitting the shocks in the new upper bracket. Lower end on the radius arm comes with a bracket but it has to be moved a bit outwards to free the shock from hitting the frame.

Next steps

Getting the truck ready includes installing the air pump with all the lines and meters, installing the CB and NMT phone with antennas as well as fitting new fender flares to make it street legal here.
